DZCC800 Series


DZ CC800 / DZ CCSE800

The DZCC800 Series Car Crusher offers the same quality, durability, productivity and serviceability that Diamond Z equipment is known for world wide. The "Viking" is designed with hardened steel wear areas to maximize the strength and stability of the crushing chamber. The DZCC800 is equipped with an automated crush and rock cycle that maximizes productivity and offers the highest level of compaction. The DZCC800 incorporates Diamond Z's signature attention to safety, ease of use and maintenance.


The DZ CCSE800 offers all the same features as the CC800 in a stationary, electric powered version. The CCSE800 also incorporates the "Viking" design, with hardened steel wear areas to maximize the strength and stability of the crushing chamber. The DZ CCSE800 is equipped with an automated crush and rock cycle that maximizes productivity and offers the highest level of compaction. The DZCC800 incorporates Diamond Z's signature attention to safety, and ease of use.




Horsepower:  173hp Cummins Tier 4 Final


Electric Powered: Optional ask us for details


Crush Cylinders:

Quantity: 2

 Cylinder Bore: 10"

 Cylinder Shaft Diameter: 4"

 Stroke Length: 78"

 Total Cylinder Force: 323,270 lbs

 System Pressure: 2,700 psi

 Relief Pressure: 2,450 psi


Crush Chamber:

Chamber Width: 20'

Chamber Depth: 7'8"

Full Open Height: 8'

Full Closed Height: 18"

Cycle Time: 50 sec


Deminsions:

Length: 48' 8"

Width: 8'2"

Transport Height: 13'3"

Maximum Operating Height: 19'9"

Ground Clearance: 14.5"

Weight-Kingpin: 30,600 lbs

Weight-Axles: 33,450 lbs

Overall Weight (approx): 64,000 lbs



DZ BL650-LS700


DZ BL650-LS700


DZ BL650-LS700

Introducing Diamond Z's newest product for scrap metal recycling, the BL650-LS700.  This machine combines the processes of baling, logging, shearing and self loading of scrap metals, complimented with portability, and versatility to maximize profit of raw goods.  The BL650-LS700 features bolt in replaceable chamber liners in a 20' crushing cavity, 211 tons per crush door pressure, and a 158 ton ram pressure creates logs and bales in under 2 minutes total cycle time.  The 700 ton shear processes C&D materials at a rate of 6-cuts per minute, all from a 540 degree rotational loader with climate controlled cab.  Automated control cycles for the baler, logger, and shear combined with a password protected touch screen with auto system analysis, and self diagnostic electrical and hydraulic systems, make the BL650-LS700 cutting edge in the industry.



DZ BL650-LS700



Horsepower:                                                                                        440


Hydraulic Capacity:                                                                1100 Gallons


Production Rate:                                                             6 cuts per minute

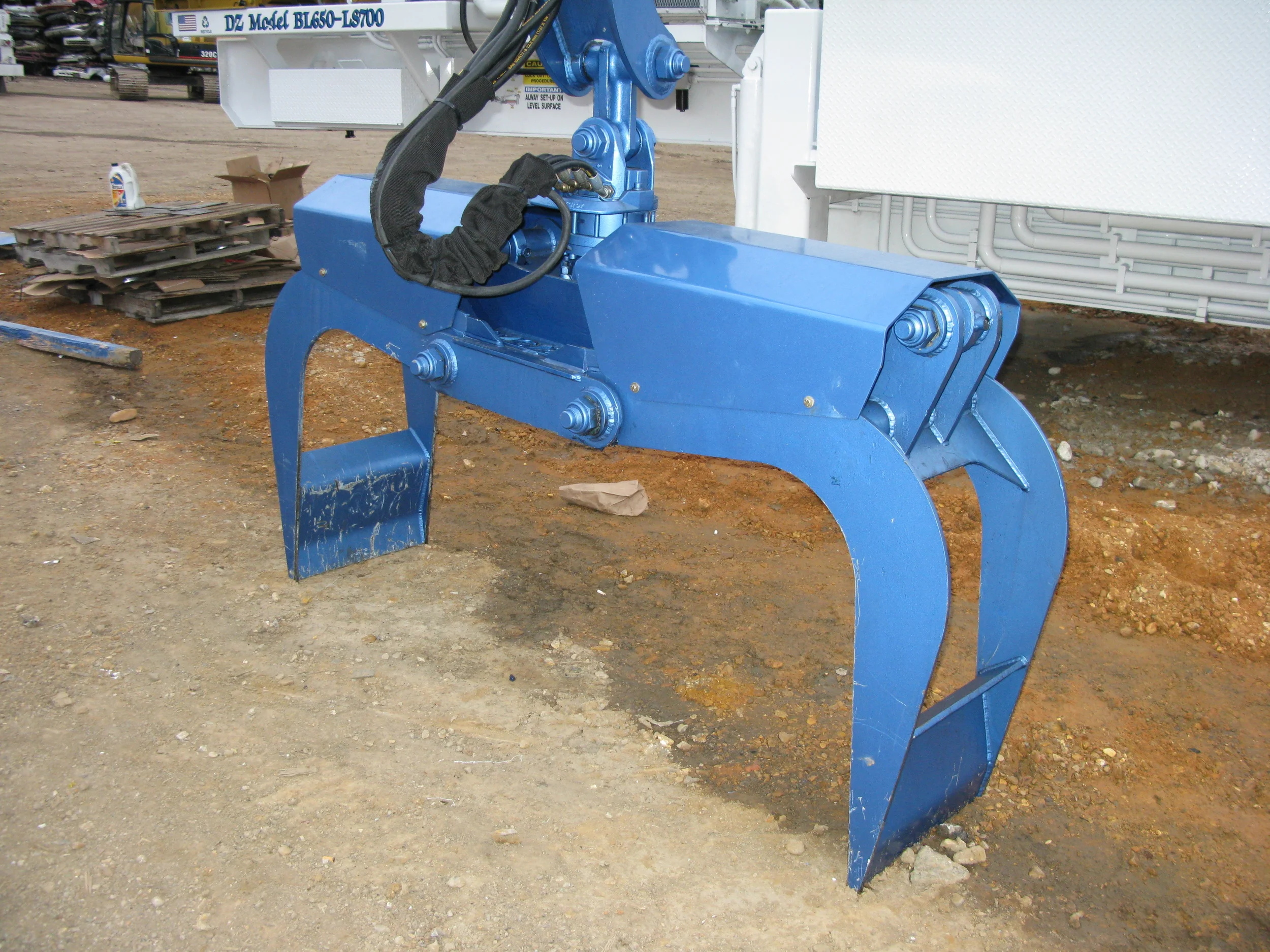

Grapple:                                                                               Up to 20 Tons
