1352B /1352BL

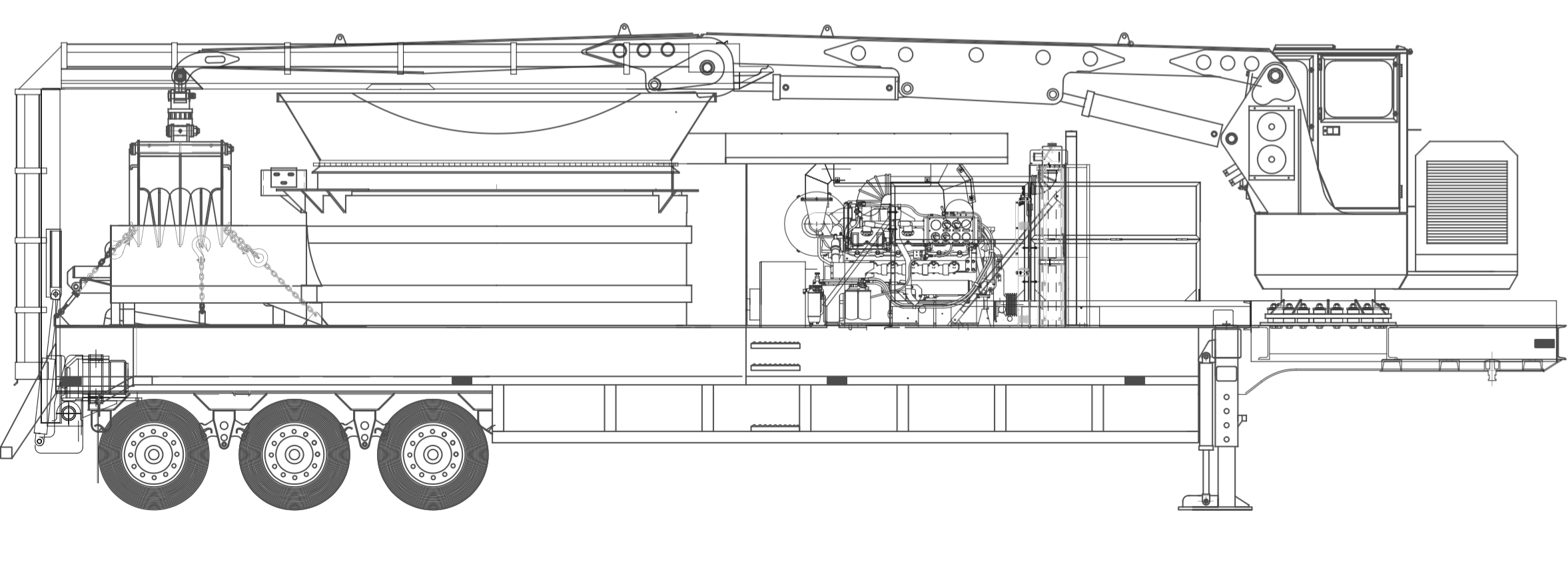

The 1352BL offers the perfect compliment of power, portability, and versatility for any operation. The self-powered loader features 360 degree continuous cab and grapple rotation from its own 110 hp engine. With an impressive 970 total horsepower on this grinder, it positions in a class of its own. The 1352BL is also equipped with a standard radial stacking Phase II conveyor which allows the operator to adjust the conveyor side-to-side during operation. The compact, mobile 1352B with powerful 875 hp engine, aggressively process up to 85 tons ground material per hour. This durable model is the simple choice for your difficult job.


  1352B

1352B

1352BL

STANDARD FEATURES: Fluid coupling mill drive, radio remote control, tool box, engine cover, and super-screw belt lacing. All track mounted machines come with 24” (600mm) wide pads (20” and 32” available on most models). Weights vary depending on options. Widths based on 600 mm tracks or transporter width. Diamond Z reserves the right to improve our products and make changes without notice. Actual products may vary.



Horsepower:                                                                                         875


Transmission:                                                            Fluid Coupling Drive


Production Rate:                                                 Up to 85 tph or 595 yph


Screen Area:                                                                           3,415 SQ IN
